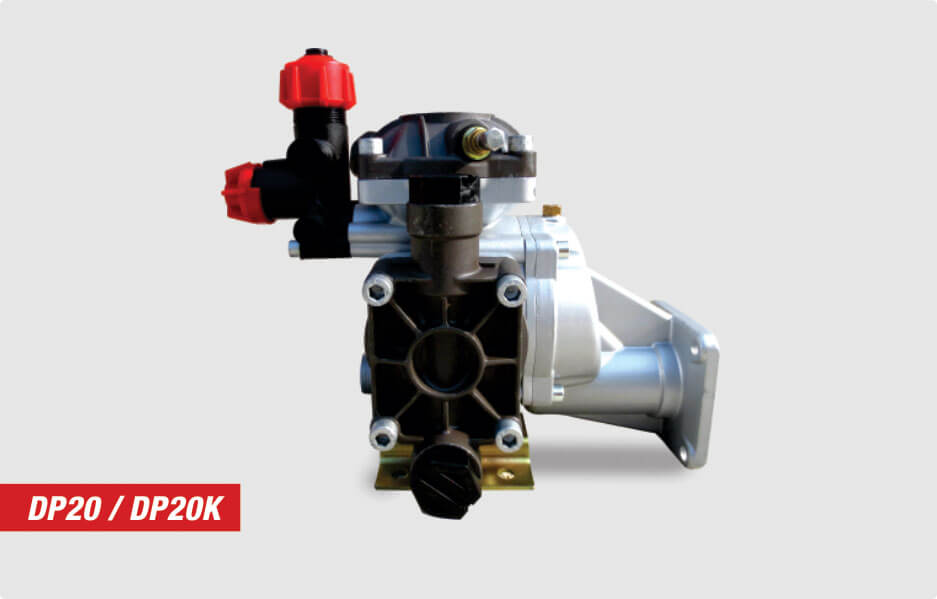

RedBee | DP20 | DP20K Spraying System

The next-generation RedBee Diaphragm Pumps provide ultimate spraying efficiency. These pumps are maintenance-free, and provide the farmer with optimum usage of chemicals, as the chemicals do not come in contact with the metal parts of the pump, as in the case of piston pumps.

Grease-free Spray: Chemicals to be sprayed do not come in contact with the pump lubricating system
Durable Structure: All the wetted parts are made of lightweight aluminium, and layered with Anti-Corrosive material
Easy to service and maintain, mounted with chemical-resistant diaphragms and valves

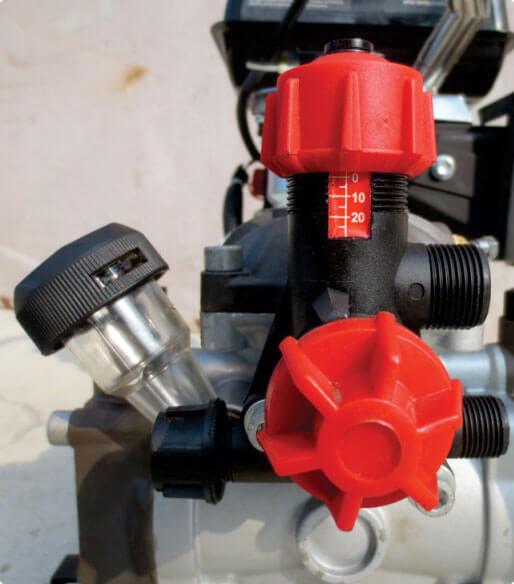

Diaphragm Accumulator: Requires just 5 BAR to maintain the system’s pressure fluctuations, varying from 0 to 40 BAR, ensuring a longer life of the diaphragm.

Maintenance-free: The moving parts of the pump are constantly lubricated, enabling it to run smoothly, without regular system checks.

Diaphragm Accumulator: Requires just 5 BAR to maintain the system’s pressure fluctuations, varying from 0 to 40 BAR, ensuring a longer life of the diaphragm.

Maintenance-free: The moving parts of the pump are constantly lubricated, enabling it to run smoothly, without regular system checks.

The chemicals to be sprayed on the plants only come in contact with the RedBee Diaphragm, which is highly resistant to harsh chemicals. Hence, the replacement of this part is rare as compared to the pistons in a piston pump.

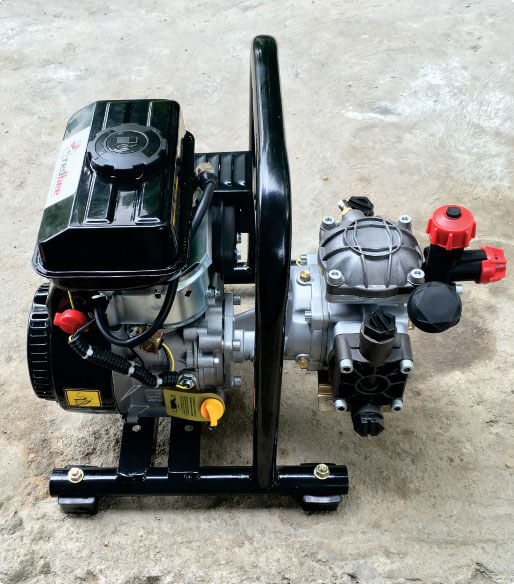

Engine	GM152F
Net Power (kW/rpm)	1.25/3600
Max Power (kW/rpm)	1.8/4000
Torque (Nm/rpm)	4/2800
Displacement (cc)	97
Engine Oil (Grade 20-W40) (ml)	400
Dry Weight (kg)	9

Pump	DP20
Rating (HP/rpm)	2.5/650
Volumetric Discharge (L/min)	20
Working Pressure (kg/cm2)	20
Accumulator	Diaphragm (with 5 BAR pressure)
Pump Oil (Grade 20-W40) (ml)	500

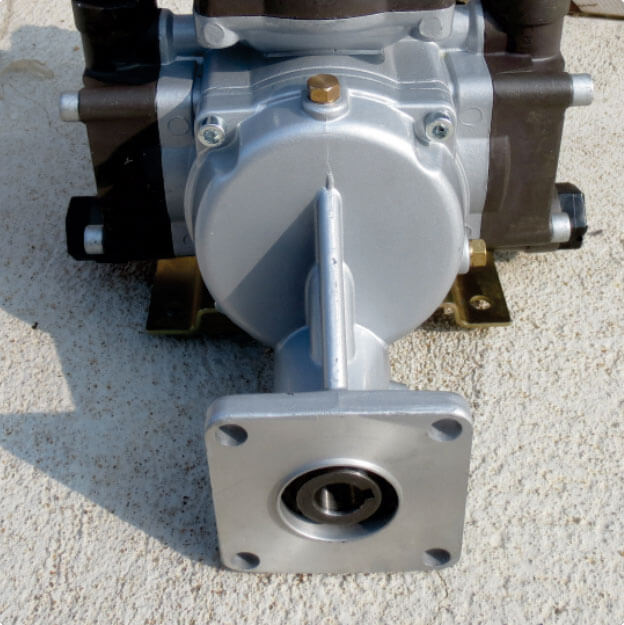

Reduction Gear Box (Grade 90) (ml)	150
Net weight (kg)	4

NOTE: Certified by NRFMTTI, Hisar. A Government of India certified Institute.
