RedBee | GM170F Engines

The RedBee GM170F is designed to suit difficult Indian conditions and used in all of our smaller equipment, such as the Spraying System, for its excellent fuel efficiency and exceptional quality.

Excellent reliability and ultimate fuel efficiency
Easy to Use and Maintain: Simple throttle control system
Oil Alarm Systems for safety of the engine in case one forgets to maintain the oil levels.

The RedBee GM170F is designed to suit difficult Indian conditions and used in all of our smaller equipment, such as the Spraying System, for its excellent fuel efficiency and exceptional quality.

EXCEPTIONALLY QUIET
Large capacity, multi-chamber exhaust system. Reduced mechanical noise.

EASY STARTING
Heavy duty recoil starter. Ergonomic, easy-grip recoil design.

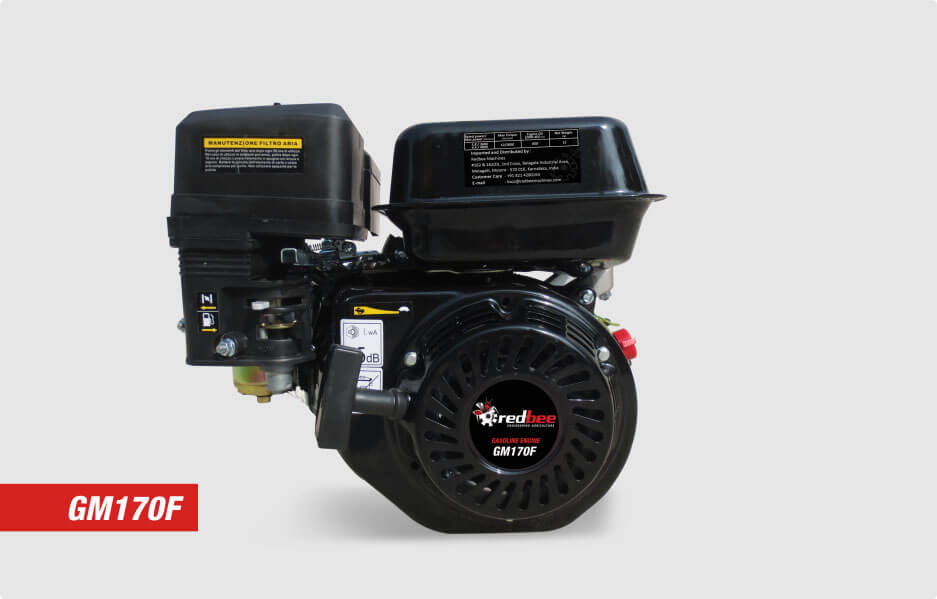

GM170F

Engine	Gasoline Engine
Engine Type	4-Stroke, OHV, SingleCylinder, Tilt 25
Rated Power / RPM (kW/rpm)	3.8/3600
Max Power / RPM (kW/rpm)	4.4/4000
Max. Torque / RPM (Nm/rpm)	10/2800
Displacement (cm3)	206
Bore (mm)	70
Stroke (mm)	54
Fuel Consumption (g/hr)	430
Engine Oil (Grade 20 - W40) (ml)	600
Dimensions (mm)	410 x 350 x 385
Dry weight (kg)	15

NOTE: Certified by NRFMTTI, Hisar. A Government of India certified Institute.
