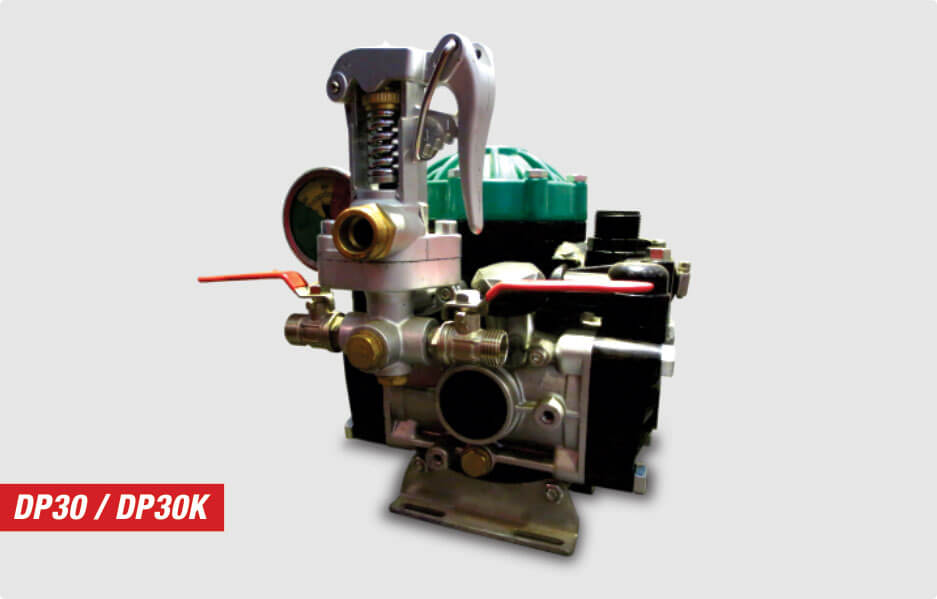

RedBee | DP30 | DP30K Spraying System

The next-generation RedBee Diaphragm Pumps provide ultimate spraying efficiency. These pumps are maintenance-free, and provide the farmer with optimum usage of chemicals, as the chemicals do not come in contact with the metal parts of the pump, as in the case of piston pumps.

Grease-free Spray: Chemicals to be sprayed do not come in contact with the pump lubricating system
Durable Structure: All the wetted parts are made of lightweight aluminium, and layered with Anti-Corrosive material
Easy to service and maintain, mounted with chemical-resistant diaphragms and valves

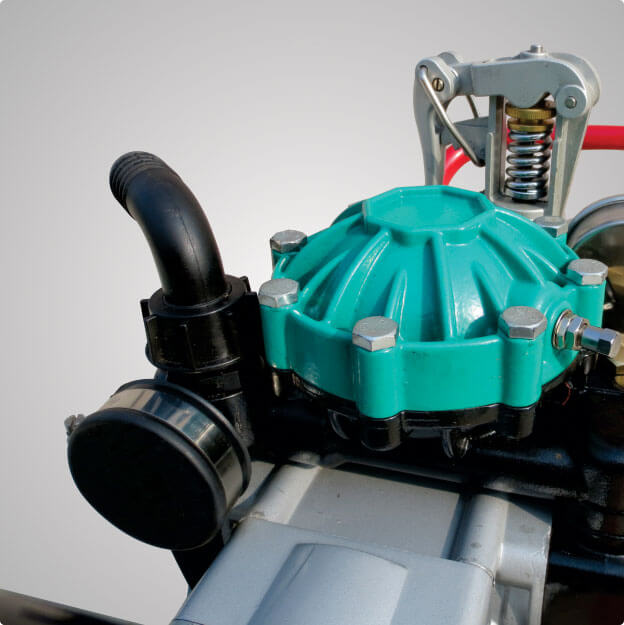

Diaphragm Accumulator: Requires just 5 BAR to maintain the system’s pressure fluctuations, varying from 0 to 40 BAR, ensuring a longer life of the diaphragm.

Maintenance-free: The moving parts of the pump are constantly lubricated, enabling it to run smoothly, without regular system checks.

Diaphragm Accumulator: Requires just 5 BAR to maintain the system’s pressure fluctuations, varying from 0 to 40 BAR, ensuring a longer life of the diaphragm.

Maintenance-free: The moving parts of the pump are constantly lubricated, enabling it to run smoothly, without regular system checks.

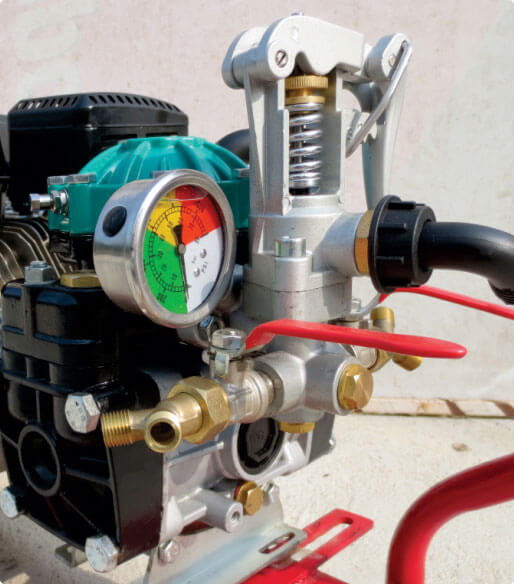

One-Point Handling System
The Redbee DB40 is a Pressure Regulating Valve combined with a 4-way Distributor System.
Includes an Unloader Handle, and a liquid-filled Pressure Gauge – making it simple to handle all operations at one point.

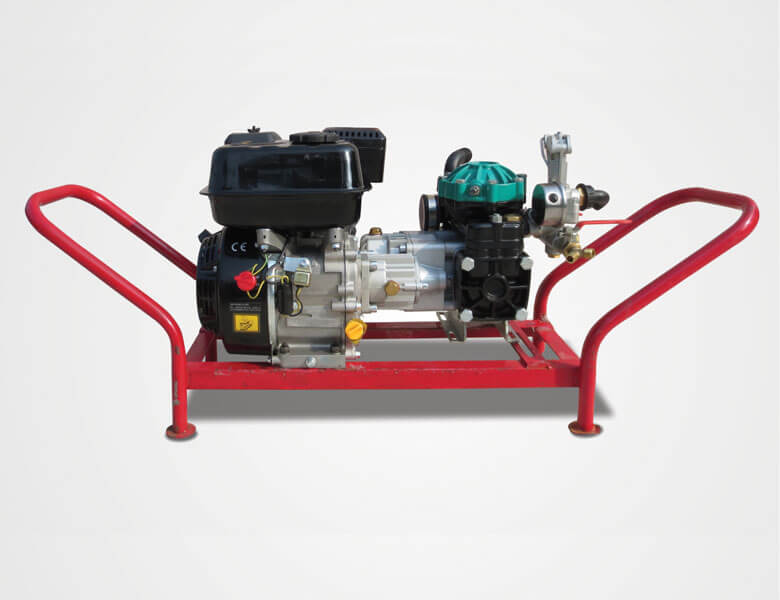

Engine	GM152F
Net Power (kW/rpm)	3.8/3600
Max Power (kW/rpm)	4.4/4000
Torque (Nm/rpm)	10/2800
Displacement (cc)	206
Engine Oil (Grade 20-W40) (ml)	600
Dry Weight (kg)	15

Pump	DP30 with DB40
Rating (HP/rpm)	5/650
Volumetric Discharge (L/min)	32
Working Pressure (kg/cm2)	20-40
Accumulator	Diaphragm (with 5 BAR pressure)
Pump Oil (Grade 20-W40) (ml)	750
Reduction Gear Box (Grade 90) (ml)	250
Net weight (kg)	11

NOTE: Certified by NRFMTTI, Hisar. A Government of India certified Institute.
