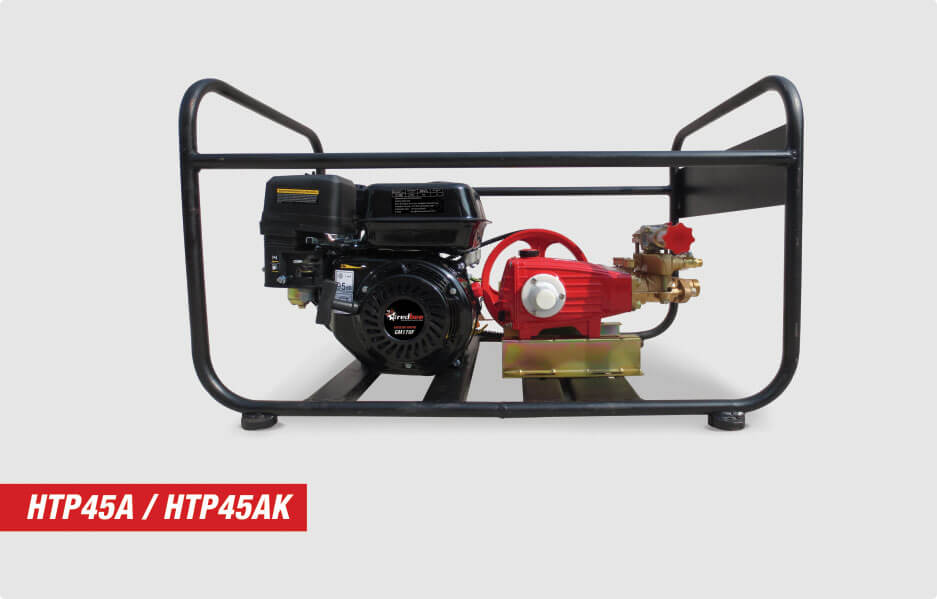

RedBee | HTP45A | HTP45AK Spraying System

The RedBee HTP Automatic Pumps are new generation Piston Pumps that solve all the problems of conventional manual-type Piston Pumps. The automatic functions validate the leaps in engineering that RedBee strives to achieve.

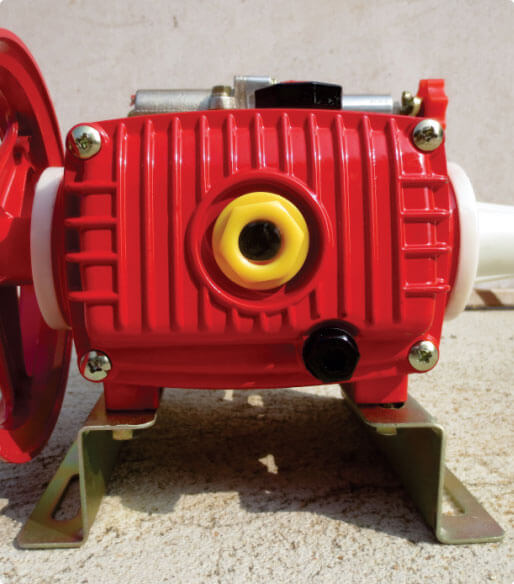

Hardy Design: Magnesium crank case makes the sprayer sturdy, yet lightweight, safeguarding the heart of the pump
Automatic Pumps: Advanced piston pumps that solve all the problems faced with conventional manual piston pumps

Spring Accumulator:
Allows the pump to react instantly to fluctuations in pressure within the system, avoiding pipe bursts, and most importantly, wastage of expensive chemicals.

Unique Design Highlight:
The safety system is a Spring Accumulator, replacing the conventional Air Accumulators.

Spring Accumulator:
Allows the pump to react instantly to fluctuations in pressure within the system, avoiding pipe bursts, and most importantly, wastage of expensive chemicals.

Unique Design Highlight:
The safety system is a Spring Accumulator, replacing the conventional Air Accumulators.

Engine	GM152F
Net Power (kW/rpm)	3.8/3600
Max Power (kW/rpm)	4.4/4000
Torque (Nm/rpm)	10/2800
Displacement (cc)	206
Engine Oil (Grade 20-W40) (ml)	600
Dry Weight (kg)	15

Pump	HTP45A
Rating (HP/rpm)	4.5-5/500-1000
Volumetric Discharge (L/min)	20-36
Working Pressure (kg/cm2)	20-40
Accumulator	Spring Loaded (Automatic)
Pump Oil (Grade 20-W40) (ml)	1000
Net weight (kg)	9.2

NOTE: Certified by NRFMTTI, Hisar. A Government of India certified Institute.
